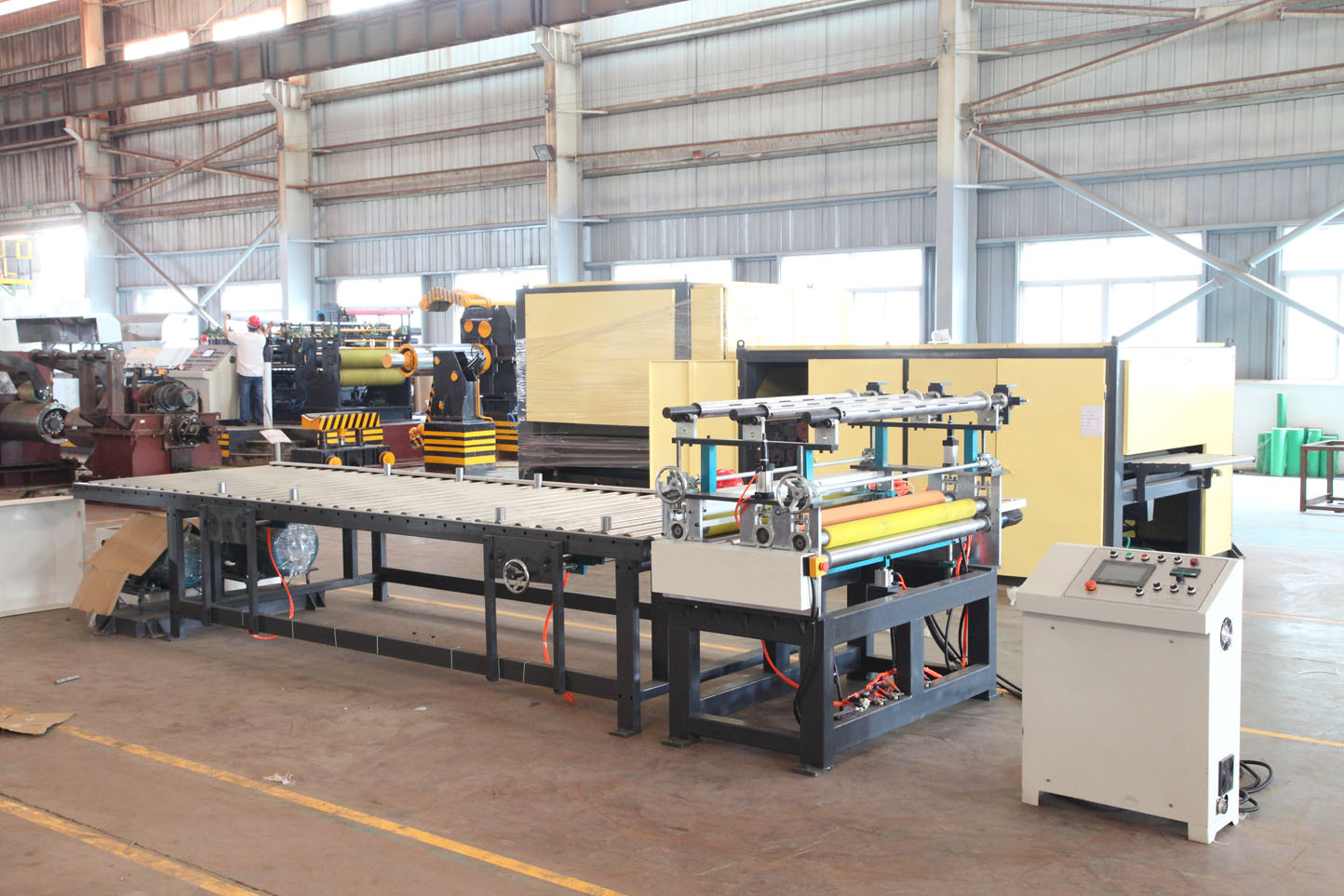

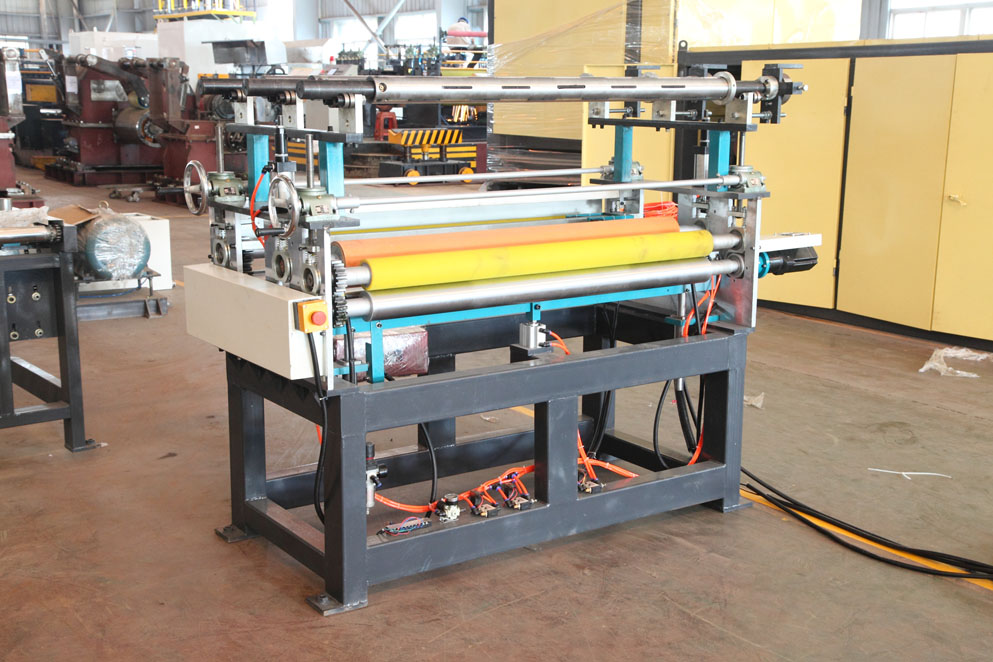

Automatic Film Laminating Machine
The Automatic Film Laminating Machine is a production line component designed to apply protective film to finished stainless steel surfaces. It can be integrated into stainless steel coil and sheet finishing lines to protect Hairline, No.4, Satin / SB, 8K Mirror and other decorative surfaces after polishing.
Description
The Automatic Film Laminating Machine is a production line component designed to apply protective film to finished stainless steel surfaces. It can be integrated into stainless steel coil and sheet finishing lines to protect Hairline, No.4, Satin / SB, 8K Mirror and other decorative surfaces after polishing.
After surface finishing and cleaning, stainless steel is particularly sensitive to scratches, fingerprints and contamination during handling, recoiling, stacking and transportation. The laminating machine applies protective film continuously and evenly, helping preserve the finished surface until further processing or delivery.
Main Functions
Automatic Protective Film Application
Applies protective film continuously to the finished stainless steel surface, reducing manual operation and supporting stable production.
Surface Protection
Helps protect polished stainless steel against scratches, dust, fingerprints and other surface damage during subsequent handling and transportation.
Stable Film Lamination
Controlled material feeding and film application help maintain smooth and consistent lamination during continuous production.
Flexible Line Integration
The machine can be integrated with polishing machines, cleaning and drying units, tension tables, recoilers and other equipment according to the production process.
Typical Position in the Production Line
For a stainless steel coil finishing line:
Decoiling → Grinding / Polishing → Cleaning & Drying → Film Laminating → Tension Control → Recoiling
For a stainless steel sheet finishing line:
Loading → Grinding / Polishing → Cleaning & Drying → Film Laminating → Stacking
The actual configuration can be customized according to the material, required surface finish and production process.
Applications
The Automatic Film Laminating Machine is suitable for protecting stainless steel surfaces such as:
- Hairline Finish
- 4 Finish
- Satin / SB Finish
- 8K Mirror Finish
- Other Decorative Stainless Steel Surfaces
- It can be configured for both stainless steel coils and sheets.
Integrated Production Line Solution
OUYIGANG provides not only individual Automatic Film Laminating Machines, but also complete stainless steel surface finishing solutions. The laminating unit can be configured together with polishing machines, cleaning systems, tension units, decoilers and recoilers to form an integrated production line.
Need a complete finishing line?
Tell us your material type, width, thickness, required finish and production capacity. We can recommend the appropriate machine and production line configuration.
